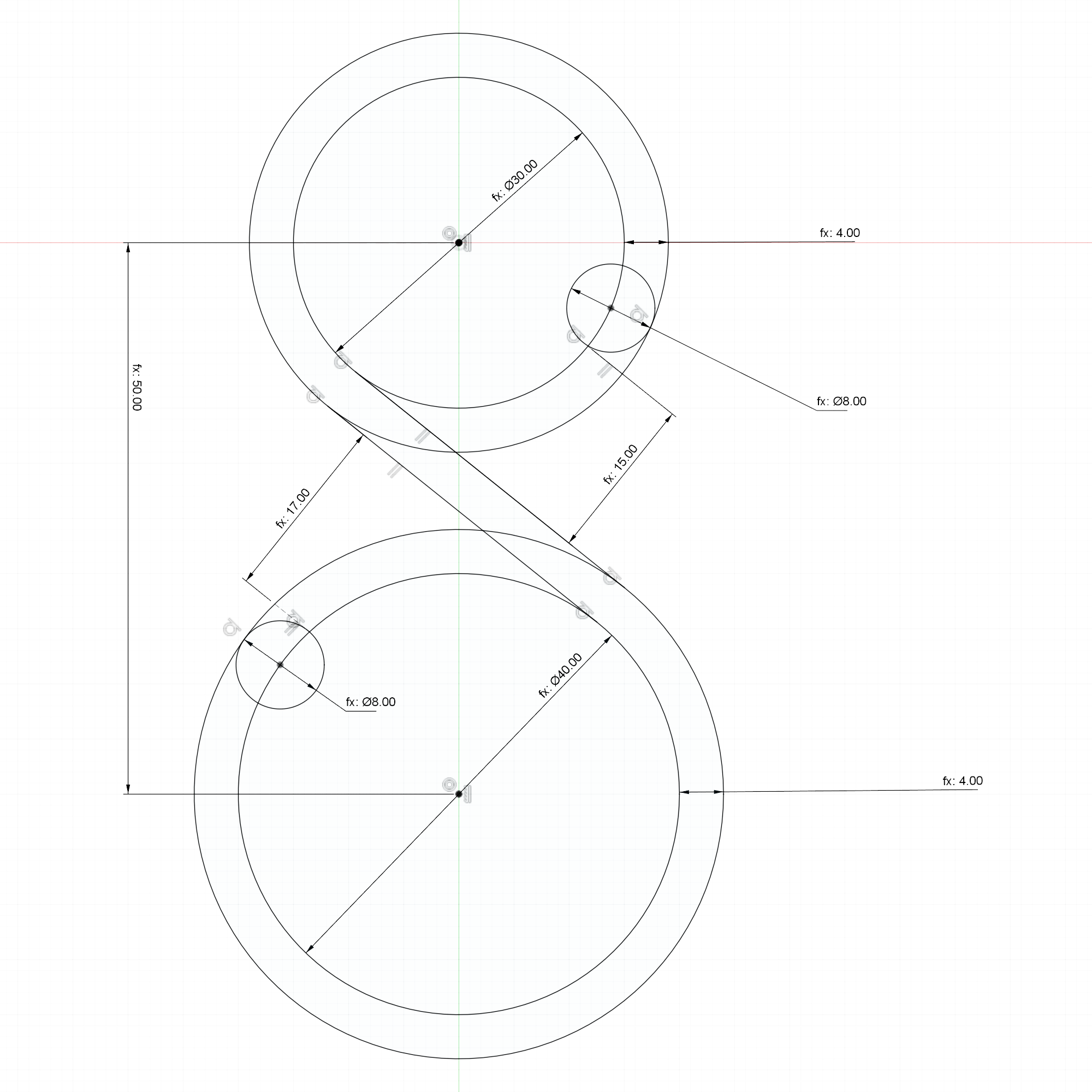

Second Part: Parametric S-Hook
| Parameter | StartValue |
|---|---|
| Diameter1 | 30 |
| Diameter2 | 40 |
| WallThickness | 4 |
| Height | 3 |
| Opening1 | 15 |
| Opening2 | 17 |
| DiameterRidge | 8 |
| DistanceBetweenCenters | 50 |
| ChamferSize | .5 |
| FilletSize | 2 |
